GD25Q64存储芯片的读写驱动 - GD32 - 技术教程🎃 | flechazo = 我在人间贩卖黄昏，只为收集世间温柔遇见你. = 有幸来到人间的旅人

对于小白的我来说，当时写这个真的是一头雾水。擦除的跨页处理就很恶心。

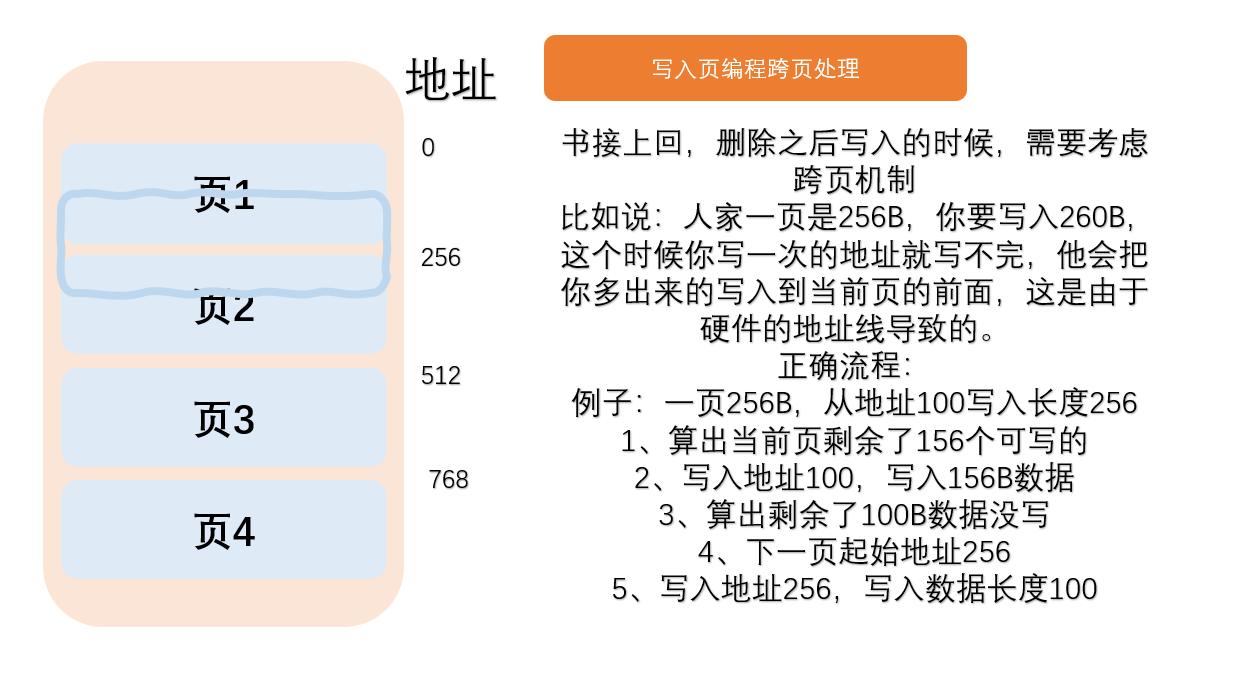

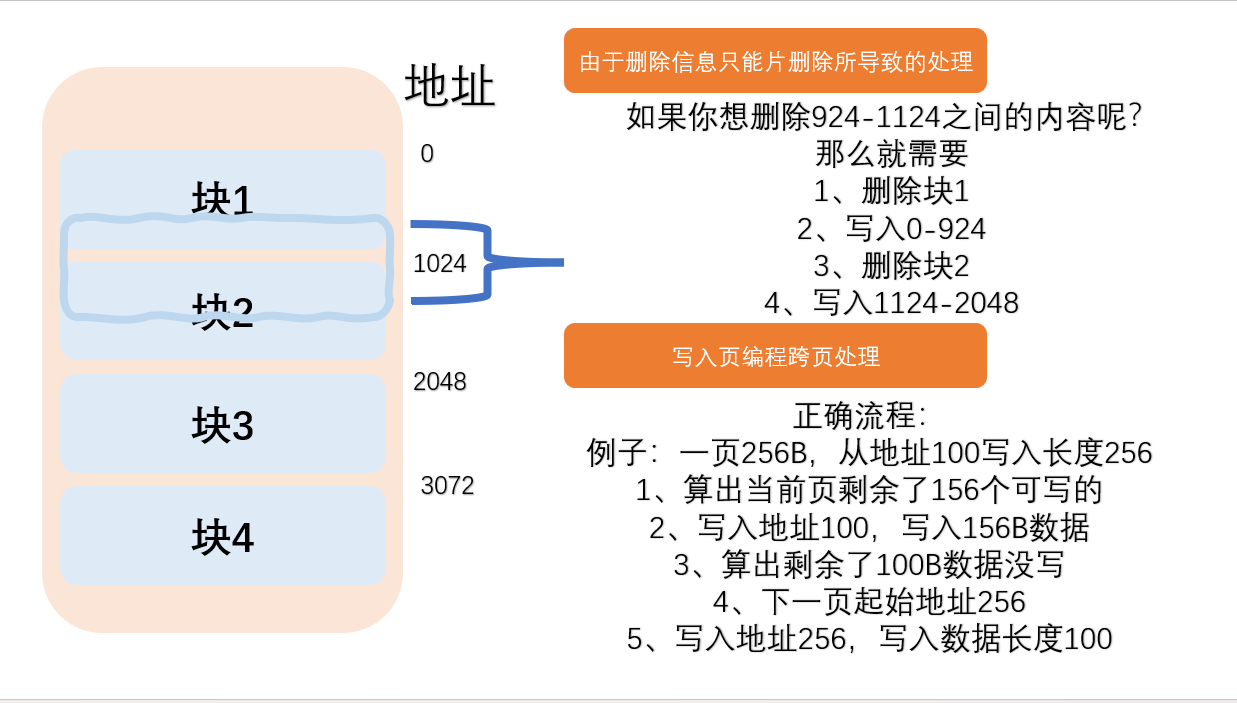

你想删除一段，这时就还得考虑把这一段额，说不清楚，画个图吧

当时因为这块，抓耳挠腮了很久，为什么网上的驱动都没有考虑这些呢？

gd25q64.h

	#ifndef __GD25Q64_H
	#define __GD25Q64_H

	#include "gd32f30x.h"

	//****************************** 引脚初始化 ***********************************************//
	#define gd25q64RCU_SPIx RCU_SPI0
	#define gd25q64RCU_GPIOx RCU_GPIOA
	#define gd25q64GPIOx GPIOA
	#define gd25q64GPIO_PIN_x GPIO_PIN_5\|GPIO_PIN_6\|GPIO_PIN_7
	#define gd25q64SPI_CS_PIN_x GPIO_PIN_4

	//****************************** 引脚初始化 ***********************************************//
	//**********************************************************************************************//
	//****************************** 数组的长度 ***********************************************//
	#define gd25q64DataLen 4096

	//****************************** 数组的长度 ***********************************************//
	//**********************************************************************************************//
	//******************************GD25 存储芯片的指令 **********************************//
	#define GD25Q64_WriteEnable 0x06
	#define GD25Q64_WriteDisable 0x04
	#define GD25Q64_ReadStatusRegister1 0x05 //S7-S0
	#define GD25Q64_ReadStatusRegister2 0x35 //S15-S8
	#define GD25Q64_ReadStatusRegister3 0x15 //S23-S16
	#define GD25Q64_WriteStatusRegister1 0x01
	#define GD25Q64_WriteStatusRegister2 0x31
	#define GD25Q64_WriteStatusRegister3 0x11
	#define GD25Q64_ReadData 0x03
	#define GD25Q64_FastRead 0x0B
	#define GD25Q64_PageProgram 0x02
	#define GD25Q64_QuadPageProgram 0x32
	#define GD25Q64_SectorErase 0x20
	#define GD25Q64_BlockErase32 0x52
	#define GD25Q64_BlockErase64 0xD8
	#define GD25Q64_ChipErase 0xC7
	#define GD25Q64_ReadIdentification 0x9F
	#define GD25Q64_DeepPowerDown 0xB9
	#define GD25Q64_ManufacturerDeviceID 0x90
	#define GD25Q64_ReleaseFromDeepPowerDown 0xAB
	#define GD25Q64_ReadIdentification 0x9F
	//******************************GD25 存储芯片的指令 **********************************//
	//**********************************************************************************************//
	//******************************GD25 存储芯片的典型速度 ****************************//
	//Program/Erase Speed
	#define PageProgramTime 0.6 //ms
	#define SectorEraseTime 50
	#define BlockEraseTime 200
	#define ChipEraseTime 25000
	//******************************GD25 存储芯片的典型速度 ****************************//
	//**********************************************************************************************//
	//******************************GD25 存储芯片的片区大小 ****************************//
	//Flexible Architecture 1M=1024K 1K=1024Byte 1Byte=8bit
	#define GD25Q64_Size (810241024)
	#define GD25Q64_PageSize 256 //Byte
	#define GD25Q64_SectorSize (4*1024) //Byte
	#define GD25Q64_BlockSize (32*1024) //Byte
	//******************************GD25 存储芯片的片区大小 ****************************//

	// 我自己当时写远程升级时的一些位置定义
	#define GD25Q64_ADDRESS_DEVINFO ((uint32_t)0x00)
	#define GD25Q64_ADDRESS_TASK ((uint32_t)0x1000)
	#define GD25Q64_ADDRESS_GLOBALTASK ((uint32_t)0x41000)
	#define GD25Q64_ADDRESS_BOOTLOADER_INFO ((uint32_t)0x81000)
	#define GD25Q64_ADDRESS_BOOTLOADER_APP1 ((uint32_t)0x82000)
	#define GD25Q64_ADDRESS_BOOTLOADER_BACKUP ((uint32_t)0xA2000)


	//****************************** 片选引脚的宏定义 ****************************//
	#define GD25Q64_CS_LOW() {gpio_bit_write(GPIOA, GPIO_PIN_4,RESET);}
	#define GD25Q64_CS_HIGH() {gpio_bit_write(GPIOA, GPIO_PIN_4,SET);}
	//****************************** 片选引脚的宏定义 ****************************//

	//****************************** 推荐常用函数 ****************************//
	//SPI 初始化
	void vgd25q64SPIInit(void);
	// 刷新写入，先删除再写入（自动处理删除，和写入跨页）
	void vgd25q64FlushWrite(uint8_t *sourcedata,uint32_t address,uint32_t length);
	// 读数据
	void vgd25q64ReadData(uint8_t *sourcedata, uint32_t address, uint32_t length);
	// 删除（删除指定地址到指定长度，自动处理跨页）
	void vgd25q64FlushDel(uint32_t address,uint32_t length);
	//****************************** 推荐常用函数 ****************************//

	//****************************** 不常用函数 ****************************//
	// 擦除片
	void vgd25q64EraseSector(uint32_t eraseAddr);
	// 擦除范围片
	void vgd25q64EraseAppointSector(uint32_t addstart,uint32_t addend);
	// 擦除整块芯片
	void Flash_EraseChip(void);
	// 写数据
	void vgd25q64WriteData(uint8_t *sourcedata, uint32_t address, uint32_t length);
	// 获取位置信息（用于变地址存储信息，减少芯片的擦写次数）
	uint32_t vgd25q64GetDataPos(uint32_t Startaddress,uint32_t length);
	// 读状态寄存器（用于配置外挂 FLASH 的一些功能）
	void vgd25q64WriteStatusRegisterx(uint8_t sourcedata, uint8_t GD25Q64_ReadStatusRegisterx);
	//****************************** 不常用函数 ****************************//


	#endif

gd25q64.c

	#include "stdio.h"
	#include "stdlib.h"
	#include "systick.h"
	#include "../User/BSP/gd25q64/gd25q64.h"

	//#define DEBUG

	uint8_t gd25q64Data[gd25q64DataLen];

	extern bool vdatastorageCheckArraySame(uint8_t sourcearray, uint8_t targetarray, uint32_t len);

	/***********************************************************
	*@fuction :vgd25q64SPIInit
	*@brief :
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	void vgd25q64SPIInit(void)
	{
	// 打开时钟
	rcu_periph_clock_enable(RCU_AF);
	rcu_periph_clock_enable(gd25q64RCU_GPIOx);
	rcu_periph_clock_enable(gd25q64RCU_SPIx);
	// 初始化引脚
	gpio_init(gd25q64GPIOx, GPIO_MODE_AF_PP, GPIO_OSPEED_50MHZ, gd25q64GPIO_PIN_x);
	gpio_init(gd25q64GPIOx, GPIO_MODE_OUT_PP, GPIO_OSPEED_50MHZ, gd25q64SPI_CS_PIN_x);
	gpio_bit_write(gd25q64GPIOx, gd25q64SPI_CS_PIN_x, SET);
	// 初始化 SPI
	spi_parameter_struct spi_init_struct;
	spi_i2s_deinit(SPI0);

	spi_struct_para_init(&spi_init_struct);

	spi_init_struct.device_mode = SPI_MASTER;
	spi_init_struct.prescale = SPI_PSC_32;
	spi_init_struct.frame_size = SPI_FRAMESIZE_8BIT;
	spi_init_struct.clock_polarity_phase = SPI_CK_PL_LOW_PH_1EDGE;
	spi_init_struct.endian = SPI_ENDIAN_MSB;
	spi_init_struct.nss = SPI_NSS_SOFT;
	spi_init_struct.trans_mode = SPI_TRANSMODE_FULLDUPLEX;

	spi_init(SPI0, &spi_init_struct);

	spi_enable(SPI0);
	}

	/***********************************************************
	*@fuction :spi_master_send_recv_byte
	*@brief :
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	uint8_t spi_master_send_recv_byte(uint8_t sourcedata)
	{
	static uint8_t ByteRecv;
	while(RESET == spi_i2s_flag_get(SPI0, SPI_FLAG_TBE))
	;
	spi_i2s_data_transmit(SPI0, sourcedata);
	while(RESET == spi_i2s_flag_get(SPI0, SPI_FLAG_RBNE))
	;
	ByteRecv = spi_i2s_data_receive(SPI0);
	return ByteRecv;
	}

	/***********************************************************
	*@fuction :spi_master_recv_some_bytes
	*@brief :
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	void spi_master_recv_some_bytes( uint8_t *sourcedata, uint16_t length)
	{
	uint8_t *temp_data = sourcedata;
	while (length--)
	{
	*temp_data = spi_master_send_recv_byte(0xFF); // 发送 0xff 为从设备提供时钟
	temp_data++;
	}
	}

	/***********************************************************
	*@fuction :vgd25q64WriteEnable
	*@brief :
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	void vgd25q64WriteEnable(void)
	{
	GD25Q64_CS_LOW();
	spi_master_send_recv_byte(GD25Q64_WriteEnable);
	GD25Q64_CS_HIGH();
	}

	/***********************************************************
	*@fuction :ucgd25q64ReadStatusRegister
	*@brief :
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	uint8_t ucgd25q64ReadStatusRegister(uint8_t GD25Q64_ReadStatusRegisterx)
	{
	GD25Q64_CS_LOW();

	spi_master_send_recv_byte(GD25Q64_ReadStatusRegisterx);
	uint8_t StatusRegisterx = spi_master_send_recv_byte(0xFF);
	GD25Q64_CS_HIGH();
	return StatusRegisterx;
	}

	/***********************************************************
	*@fuction :vgd25q64WriteStatusRegisterx
	*@brief : 写状态寄存器
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	void vgd25q64WriteStatusRegisterx(uint8_t sourcedata, uint8_t GD25Q64_ReadStatusRegisterx)
	{
	vgd25q64WriteEnable();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	GD25Q64_CS_LOW();
	spi_master_send_recv_byte(GD25Q64_ReadStatusRegisterx);
	spi_master_send_recv_byte(sourcedata);
	GD25Q64_CS_HIGH();
	}

	/***********************************************************
	*@fuction :vgd25q64EraseSector
	*@brief : 擦除 sector
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	void vgd25q64EraseSector(uint32_t eraseAddr)
	{
	vgd25q64WriteEnable();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	GD25Q64_CS_LOW();
	spi_master_send_recv_byte(GD25Q64_SectorErase);
	spi_master_send_recv_byte((uint8_t)(eraseAddr >> 16));
	spi_master_send_recv_byte((uint8_t)(eraseAddr >> 8));
	spi_master_send_recv_byte((uint8_t)(eraseAddr));
	GD25Q64_CS_HIGH();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	}

	/***********************************************************
	*@fuction :vgd25q64EraseAppointSector
	*@brief : 擦除指定范围的 sector
	*@param : 起始地址到结束地址
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	void vgd25q64EraseAppointSector(uint32_t addstart, uint32_t addend)
	{
	uint32_t startsector = addstart / GD25Q64_SectorSize * GD25Q64_SectorSize;
	uint32_t endsector = addend / GD25Q64_SectorSize * GD25Q64_SectorSize;
	uint32_t erasesectornum = (endsector / GD25Q64_SectorSize) - (startsector / GD25Q64_SectorSize);
	for(uint8_t i = 0; i <= erasesectornum; i++)
	{
	vgd25q64EraseSector(startsector + i * GD25Q64_SectorSize);
	}
	}

	/***********************************************************
	*@fuction :Flash_EraseChip
	*@brief : 整片擦除
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	void Flash_EraseChip(void)
	{
	vgd25q64WriteEnable();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	GD25Q64_CS_LOW();
	spi_master_send_recv_byte(GD25Q64_ChipErase);
	GD25Q64_CS_HIGH();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	}

	/***********************************************************
	*@fuction :uigd25q64ReadIdentification
	*@brief :
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	unsigned int uigd25q64ReadIdentification(void)
	{
	uint32_t Identification = 0;
	uint8_t recv_buff[3] = {0};

	GD25Q64_CS_LOW();

	spi_master_send_recv_byte(GD25Q64_ReadIdentification); //9fh

	uint8_t recvLen = sizeof(recv_buff);

	for(uint8_t i = 0 ; i < recvLen; i++)
	{
	recv_buff[i] = spi_master_send_recv_byte(0xFF); // 发送 0xff 为从设备提供时钟
	}

	Identification = (recv_buff[0] << 16) \| (recv_buff[1] << 8) \| (recv_buff[2]);

	GD25Q64_CS_HIGH();

	return Identification;
	}

	/***********************************************************
	*@fuction :usgd25q64ReadID
	*@brief :
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	unsigned short usgd25q64ReadID(void)
	{
	uint16_t ID = 0;
	GD25Q64_CS_LOW();

	spi_master_send_recv_byte(GD25Q64_ManufacturerDeviceID);
	spi_master_send_recv_byte(0x00);
	spi_master_send_recv_byte(0x00);
	spi_master_send_recv_byte(0x00);

	ID \|= spi_master_send_recv_byte(0xFF) << 8;
	ID \|= spi_master_send_recv_byte(0xFF);

	GD25Q64_CS_HIGH();

	return ID;
	}

	/***********************************************************
	*@fuction :vgd25q64WritePage
	*@brief : 页编程，需要考虑先删除，后写入，写入时要考虑跨页机制
	*@param :--
	*@return :void
	*@author :flechazo
	*@date :2023-06-13
	***********************************************************/
	void vgd25q64WritePage(uint8_t *sourcedata, uint32_t address, uint32_t length)
	{
	vgd25q64WriteEnable();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	GD25Q64_CS_LOW();
	spi_master_send_recv_byte(GD25Q64_PageProgram);
	spi_master_send_recv_byte(address >> 16);
	spi_master_send_recv_byte(address >> 8);
	spi_master_send_recv_byte(address >> 0);
	for(uint32_t i = 0; i < length; i++)
	{
	spi_master_send_recv_byte(sourcedata[i]);
	}

	GD25Q64_CS_HIGH();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	}

	/***********************************************************
	*@fuction :vgd25q64WriteData
	*@brief :
	*@param :--
	*@return :void
	*@author :flechazo 更多例程请访问 (flechazo.mba)
	*@date :2023-06-22
	***********************************************************/
	void vgd25q64WriteData(uint8_t *sourcedata, uint32_t address, uint32_t length)
	{
	uint32_t currentGroup = 0;
	uint32_t DataAdd = address;
	uint32_t currentLen = length, residuelength = length;
	uint32_t shiftingadd = address % GD25Q64_PageSize;
	uint32_t firstwritelength = 0;
	uint8_t status1 = ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1);
	uint8_t status2 = ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister2);
	uint8_t status3 = ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister3);
	vgd25q64WriteStatusRegisterx(0x04, GD25Q64_ReadStatusRegister1);
	status1 = ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1);
	//write first page
	if(shiftingadd && ((shiftingadd + length) > GD25Q64_PageSize))
	{
	firstwritelength = GD25Q64_PageSize - shiftingadd;
	vgd25q64WriteEnable();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	GD25Q64_CS_LOW();
	spi_master_send_recv_byte(GD25Q64_PageProgram);
	spi_master_send_recv_byte(DataAdd >> 16);
	spi_master_send_recv_byte(DataAdd >> 8);
	spi_master_send_recv_byte(DataAdd >> 0);
	for(uint32_t i = 0; i < firstwritelength; i++)
	{
	spi_master_send_recv_byte(sourcedata[i]);
	}

	GD25Q64_CS_HIGH();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;

	DataAdd += firstwritelength;
	residuelength -= firstwritelength;
	currentLen = residuelength;
	}

	do
	{
	//vgd25q64ReadData(gd25q64Data,PosGD25Q64_TaskInfo_num_I,GD25Q64_SectorSize);
	if(currentLen > (GD25Q64_PageSize))
	{
	currentLen = GD25Q64_PageSize;
	}
	vgd25q64WriteEnable();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	GD25Q64_CS_LOW();
	spi_master_send_recv_byte(GD25Q64_PageProgram);
	spi_master_send_recv_byte(DataAdd >> 16);
	spi_master_send_recv_byte(DataAdd >> 8);
	spi_master_send_recv_byte(DataAdd >> 0);
	for(uint32_t i = 0; i < currentLen; i++)
	{
	uint32_t shifting = firstwritelength + i + (currentGroup * GD25Q64_PageSize);
	spi_master_send_recv_byte(sourcedata[shifting]);
	}

	GD25Q64_CS_HIGH();
	while(((ucgd25q64ReadStatusRegister(GD25Q64_ReadStatusRegister1)) & 0x01) == 0x01)
	;
	if(residuelength >= currentLen)
	{
	residuelength -= currentLen;
	}
	DataAdd += currentLen;
	currentLen = residuelength;
	}
	while((currentGroup++) < (length / (GD25Q64_PageSize)));
	}

	/*!
	\brief vgd25q64ReadData
	\param[in] *sourcedata
	\param[in] address
	\param[in] length
	\param[out] none
	\retval none
	*/
	void vgd25q64ReadData(uint8_t *sourcedata, uint32_t address, uint32_t length)
	{
	uint8_t *temp_data = sourcedata;

	GD25Q64_CS_LOW();

	spi_master_send_recv_byte(GD25Q64_ReadData);
	spi_master_send_recv_byte((uint8_t)(address >> 16));
	spi_master_send_recv_byte((uint8_t)(address >> 8));
	spi_master_send_recv_byte((uint8_t)(address >> 0));

	while (length--)
	{
	*temp_data = spi_master_send_recv_byte(0xFF); // 发送 0xff 为从设备提供时钟
	temp_data++;
	}

	GD25Q64_CS_HIGH();
	}

	/*!
	\brief vgd25q64FlushWrite erase -> write
	\param[in] *data
	\param[in] add
	\param[in] length
	\param[out] none
	\retval none
	*/
	void vgd25q64FlushWrite(uint8_t *sourcedata, uint32_t address, uint32_t length)
	{
	bool falg = false;
	uint32_t startSectorAddress = ((address / GD25Q64_SectorSize) * GD25Q64_SectorSize);
	uint32_t endSectorAddress = (((address + length) / GD25Q64_SectorSize) * GD25Q64_SectorSize);
	uint32_t startAddress = address % GD25Q64_SectorSize;
	vgd25q64ReadData(gd25q64Data, startSectorAddress, GD25Q64_SectorSize);

	for(uint32_t i = 0; i < length; i++)
	{
	if(gd25q64Data[startAddress + i] != 0xFF)
	{
	falg = true;
	}
	}
	//no need to erase
	if(!falg)
	{
	vgd25q64WriteData(sourcedata, address, length);
	}
	else
	{
	//need to erase
	if(startSectorAddress == endSectorAddress)
	{
	for(uint32_t i = 0; i < length; i++)
	{
	gd25q64Data[i + startAddress] = sourcedata[i];
	}
	vgd25q64EraseSector(address);
	vgd25q64WriteData(gd25q64Data, startSectorAddress, GD25Q64_SectorSize);
	}
	else
	{
	for(uint32_t i = 0; i < (GD25Q64_SectorSize - startAddress); i++)
	{
	gd25q64Data[i + startAddress] = sourcedata[i];
	}
	vgd25q64EraseSector(startSectorAddress);
	vgd25q64WriteData(gd25q64Data, startSectorAddress, GD25Q64_SectorSize);

	uint32_t enddatalen = length - (GD25Q64_SectorSize - startAddress);
	vgd25q64ReadData(gd25q64Data, endSectorAddress, GD25Q64_SectorSize);
	for(uint32_t i = 0; i < enddatalen; i++)
	{
	gd25q64Data[i] = sourcedata[(GD25Q64_SectorSize - startAddress) + i];
	}
	vgd25q64EraseSector(endSectorAddress);
	vgd25q64WriteData(gd25q64Data, endSectorAddress, GD25Q64_SectorSize);
	}
	}
	}

	/***********************************************************
	*@fuction :vgd25q64FlushDel
	*@brief :
	*@param :--
	*@return :void
	*@author :--
	*@date :2023-04-23
	***********************************************************/
	void vgd25q64FlushDel(uint32_t address, uint32_t length)
	{

	uint32_t startSectorAddress = ((address / GD25Q64_SectorSize) * GD25Q64_SectorSize);
	uint32_t endSectorAddress = (((address + length) / GD25Q64_SectorSize) * GD25Q64_SectorSize);
	uint32_t SectorinterstartAddress = (address - startSectorAddress);
	if(startSectorAddress == endSectorAddress)
	{
	vgd25q64ReadData(gd25q64Data, startSectorAddress, GD25Q64_SectorSize);
	vgd25q64EraseSector(startSectorAddress);

	//write Previous
	vgd25q64WriteData(gd25q64Data, startSectorAddress, SectorinterstartAddress);

	//write subsequent
	vgd25q64WriteData(gd25q64Data + SectorinterstartAddress + length, startSectorAddress + SectorinterstartAddress + length, GD25Q64_SectorSize - SectorinterstartAddress - length);

	}
	else
	{
	//startSectorAddress
	vgd25q64ReadData(gd25q64Data, startSectorAddress, GD25Q64_SectorSize);
	vgd25q64EraseSector(startSectorAddress);
	vgd25q64WriteData(gd25q64Data, startSectorAddress, SectorinterstartAddress);

	//endSectorAddress
	vgd25q64ReadData(gd25q64Data, endSectorAddress, GD25Q64_SectorSize);
	vgd25q64EraseSector(endSectorAddress);
	uint32_t endSectorWriteAdd = (length + SectorinterstartAddress) % GD25Q64_SectorSize ;
	vgd25q64WriteData(&gd25q64Data[endSectorWriteAdd], endSectorAddress + endSectorWriteAdd, GD25Q64_SectorSize - endSectorWriteAdd);

	//middleSector
	uint32_t middleSector = address + GD25Q64_SectorSize;
	for( ; middleSector < endSectorAddress; middleSector += GD25Q64_SectorSize)
	{
	vgd25q64EraseSector(middleSector);
	}
	}
	}

	/***********************************************************
	*@fuction :vgd25q64GetDataPos
	*@brief :input address then output this data storage position
	*@param :uint32_t Startaddress uint32_t length
	*@return :uint32_t position
	*@author :flechazo
	*@date :2023-04-23
	***********************************************************/
	uint32_t vgd25q64GetDataPos(uint32_t Startaddress, uint32_t length)
	{
	uint32_t position = 0;
	uint32_t tempPos;
	uint32_t count = 0;
	bool direction = false;
	vgd25q64ReadData(gd25q64Data, Startaddress, length);
	tempPos = length;
	uint8_t checkdata[8] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF};
	do
	{
	tempPos /= 2;
	if(direction)
	{
	position -= tempPos;
	}
	else
	{
	position += tempPos;
	}
	count++;
	if(vdatastorageCheckArraySame(checkdata, &gd25q64Data[position], 8))
	{
	//data is front
	direction = true;
	}
	else
	{
	//data is back
	direction = false;
	}
	}
	while(tempPos > 0);
	position++;

	while(gd25q64Data[position] == 0xFF)
	{
	position--;
	}
	position++;

	return (position + Startaddress);
	}

GD32

单片机代码框架

python批量改文件名字
